Denon DJ Prime 4

‌Denon DJ Prime 4 stand-alone DJ konsool 4-kanaliga

4-Deck Standalone Dj System With 10” Touchscreen

The World  ‘s Most Powerful, Advanced Dj System Has Arrived

Command every gig, audience, genre, event and location! The multicore processor powered Prime 4 makes your entire music collection available, with no laptop needed, transparently connecting you into your performance. With 4-deck hardware control and advanced touchscreen workflow, you’re all set to handle any DJ set, anywhere, anytime.

4-Deck, ‘All-In-One’ Standalone Dj System

• Touch, move and orchestrate your digital music with the DJ world’s most advanced, multi-gesture touchscreen
• Entertain two separate audiences – Rock the dancefloor in one room and Zone output to a different location simultaneously
• Access and play your tracks, fully standalone, from literally unlimited sized music collections and media sources
• Multicore processor powered, gig ready, rugged metal chassis and renowned Denon DJ pristine audio quality

Multi-Gesture 10” Touchscreen: Feel Your Music

• View 4-deck waveforms in glorious color
• Search, select and load your tracks
• Create playlists and crates on-the-fly
• Monitor all essential DJ parameters and info

Play Music In Two Separate Rooms

• Dedicated XLR Zone output with gain and EQ control
• Stream back-to-back music automatically into second room
• Assign either Deck 4 or Master signal to Zone output
• Party in one room, chill-out in the other

No Limits Media Sources

• Bring massive music libraries to gigs
• 4 USB inputs, 1 x SD card slot
• Futureproof storage with built-in 2.5” SATA drive bay
• Record a full DJ set to any connected source
• USB keyboard support for optional music search
• Plays several standard uncompressed and compressed file formats

Mix, Blend And Shape Your Sound

• 4-channel line faders, each with 3-band EQ and gain
• Single encoder, (4) sweep FX and filter control
• 14 Mainstage quality Post-Fader FX
• Inputs are assignable for external media sources
• Replaceable Denon DJ flex Crossfader

Dual Microphone Control

• No compromise of line fader – 2 dedicated mic channels
• Control EQ, level and echo effects on both mics
• Punch in on/off and talkover option for pro-mobile use
• 2 dedicated TRS mic inputs

Spetsifikatsioonid:

Audio

• Bit Depth: 24-bit
• Sampling Rate: 44.1kHz
• Dynamic Range: > 117dB (A-weighted)
• Frequency Response: 20Hz to 20kHz (+/-1dB)
• Signal-to-Noise Ratio: > 93dB (A-weighted)
• Headroom: Line: > 15dB. Microphone: > 20dB. Outputs: > 20dB

• Channel Separation: < -90dB (1kHz, unity)

THD

• Line/Phono: < 0.01% (1kHz, unity)
• Microphone: < 0.02% (1kHz, unity)

Analog Input

• Line:0dBV (unity), +15dBV (maximum)
• Microphone:-40dBu (unity), -60dBu (minimum)

Analog Output

• Master Balanced: +4dBu (unity), +24dBu (maximum)
• Master Unbalanced: 0dBu (unity), +20dBu (maximum)
• Zone Balanced: +4dBu (unity), +24dBu (maximum)
• Booth: +4dBu (unity), +24dBu (maximum)
• Headphone: < 150mW

Supported Media

Type:

• SD/SDHC card
• USB mass-storage devices (flash memory, 2.5 internal SATA, and external HDD enclosures)

File Systems

• exFAT
• FAT32 (recommended)

Supported Audio File Formats

• AAC/M4A
• AIF/AIFF (44.1–192kHz, 16–32-bit)
• ALAC
• FLAC
• MP3 (32–320 kbps, VBR)
• MP4
• Ogg Vorbis
• WAV (44.1–192kHz, 16–32-bit)

Displays

Main

• 10.1” / 257 mm (diagonal)
• 8.5” x 5.5” / 216 x 139 mm (width x height)
• Full-color LED-backlit display with touch interface

Jog Wheel

• 2.2” / 56 mm (diameter)
• Full-color LED-backlit display

FX

• 128 pixels wide x 32 pixels high
• Black & White OLED display

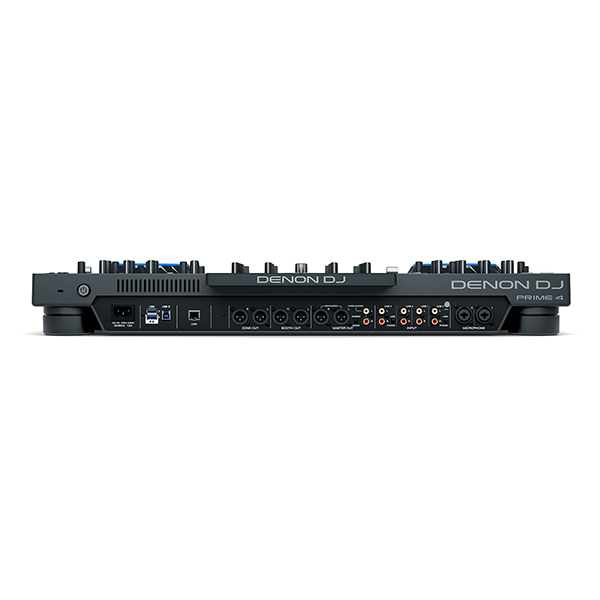

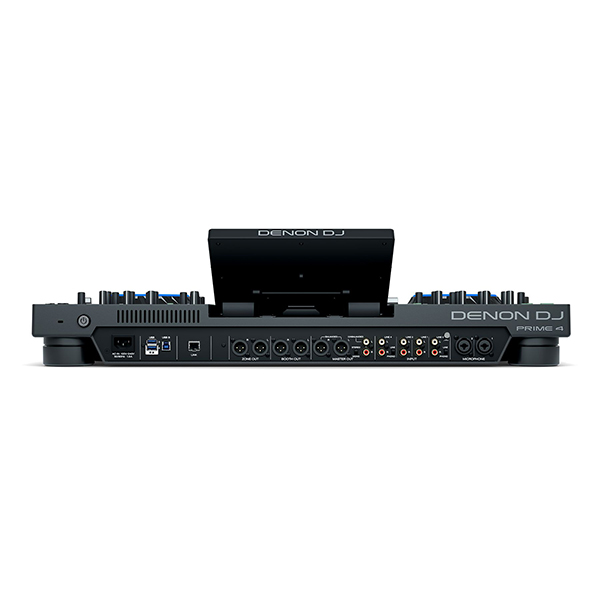

Connections

• (6) Professional grade Neutrik XLR outputs (Master, Zone, and Booth)
• (2) Professional grade Neutrik XLR+1/4″ (6.35 mm) microphone inputs
• (1) RCA output pair (Master)
• (4) RCA input pairs (line/phono channel 3 & 4)
• (1) 1/8” (3.5 mm) output (headphone)
• (1) 1/4” (6.35 mm) output (headphone)
• (1) Ethernet link port
• (1) IEC power inlet
• (4) USB type A media port (female)
• (1) USB type B host port (female)
• (1) SD card slot
• (1) SATA + power for internal 2.5″ hard drive

Power

• Connection: IEC
• Input Voltage: 110-240 VAD, 50/60 Hz

Consumption:

• 38W ~ 39W (without mobile device charging on USB port 4)
• 43W ~ 45W (with mobile device charging on USB port 4)

• Dimensions: 728.47 x 496.82 x 103.63 mm
• Weight: 9,7 kg
