Specifications:
Overall System
- Operating Frequencies 2.4 GHz ISM band
- Frequency Response 20 Hz to 20 kHz Depending on microphone type
- Operating Range 30 m (100′) Open range env. with no interfering signals
- Dynamic Range >109 dB (A-weighted), typical
- Total Harmonic Distortion <0.05% typical
- Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
- Audio Sampling 24 bit / 48 kHz
- Latency 3.8 ms

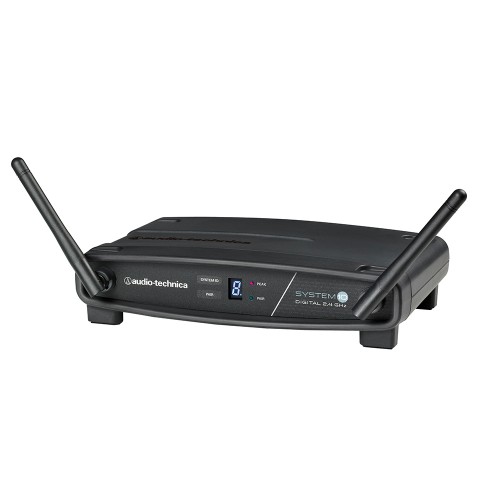

Receiver
- Receiving System Diversity (frequency/time/space)
- Maximum Output Level XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV
- Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
- Dimensions 190 mm W x 46.2 mm Hx 128.5 mm D
- Weight 290g
- Accessories Included Power supply

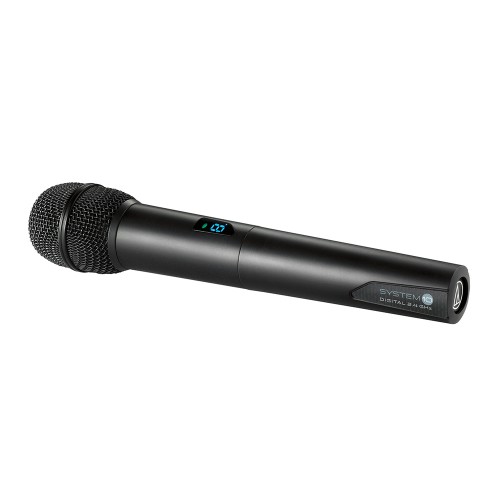

Handheld Transmitter
- RF Power Output 10 mW
- Spurious Emissions Following federal and national regulations
- Battery Type Two 1.5V AA (not included)
- Battery Life >7 hours (alkaline) (Depending on battery type and use pattern)
- Dimensions 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
- Net Weight 280g
- Accessories Included AT8456a Quiet-Flex™ stand clamp
