ALUTRUSS TOWERTRUSS TQTR-5000 4-Way Cross Beam

Ettetellimisel
Ilma käibemaksuta 876.89€

1069.81

The following rules are working:
  • Minimum quantity required for this product: 1
  • Cart must contain 1 items at least.
  • Minimum quantity required for category Trussiliftid: 1
Kogus
Tootekood: 60304460 Kategooria:
Ask for delivery time
×

    Küsi abi

    Henry-Mario

    [email protected]

    +372 5910 4087

    Tasuta tarne, kui e-poe tellimuse summa ületab 139€
    14-päevane raha tagasi garantii
    Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

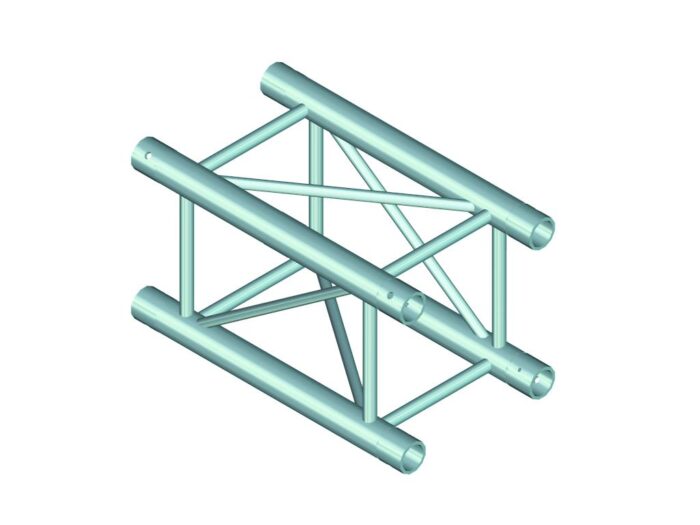

    TOWERTRUSS TQTR 4-point truss systemTOWERTRUSS TQTR is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins. TOWERTRUSS TQTR is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy with 20 mm braces for high loads.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The four main chords are made of 50 mm aluminum tube with 4 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.With 290 mm outer dimensions, TOWERTRUSS TQTR is a stable truss system for high loads and extended durability. This system is mainly designed for building the Tower System I and II and for intense use in stage installations, fair installations, event installations.The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!Please note: this truss system must never be combined with other systems!

    4-point tower cross beam

    • Easy rigging
    • For building ground supports
    • 1 x Connection set included
    • Trusspipe: 50 mm
    • T?V S?d certified
    Trusspipe: 50 mm x 4 mm
    Welding technique: TIG-welding
    Welding material: AlMg 5
    Alloy: AlMgSi 0.5
    Color: Alu colored
    Strut diameter x thickness: 20 x 2mm
    Dimensions: Length: 5 m
    Width: 29 cm
    Depth: 29 cm
    Weight: 39,7 kg
