SINGLELOCK SP 1-point truss systemSINGLELOCK SP is a 1-point truss system made of aluminum. The individual elements are connected via one cone, pivots and pins.The advantage of the conical connection system is that the cone completely fits into the main chord so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The main chord is made of 50 mm aluminum tube with 2 mm wall thickness and offers a good relation between strength and weight.SINGLELOCK SP is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.With SINGLELOCK SP, decorative frames with advertising signs, transmission canvas etc. can be realized.The documentation of this truss system is closely related to the Codes of Practice SQ P1 – Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!Please note: this truss system must never be combined with other systems!

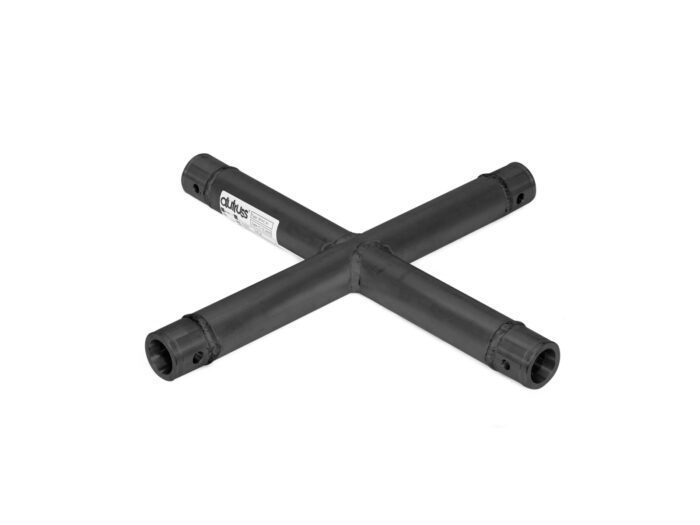

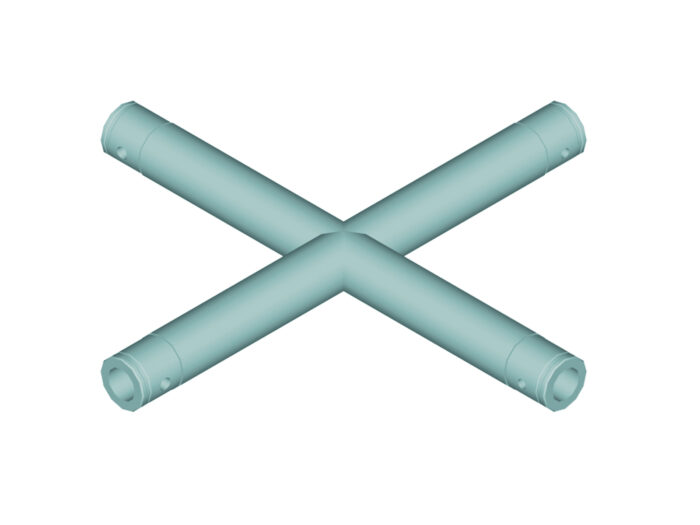

Single tube with quick-lock
- Easy installation
- Low weight
- For decoration or frame construction for projection foils
- 3 x Connection set included
- Trusspipe: 50 mm
- Made in Europe
- For application areas such as: Shop fitting Trade fair construction Gym Stage Lender
| Trusspipe: | 50 mm x 2 mm |
| Color: | Black, powder-coated |
| Dimensions: | Length: 50 cm Width: 50 cm Height: 5 cm |
| Weight: | 2,19 kg |
