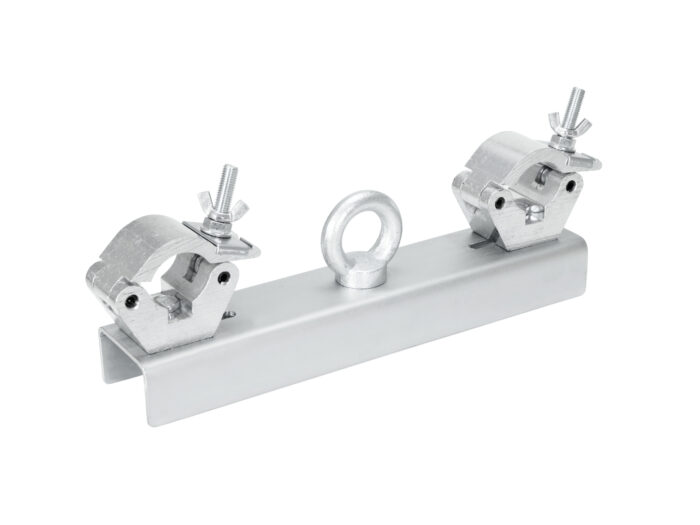

Truss mount
- With two TPC-50 clam
- Trusspipe: 50 mm

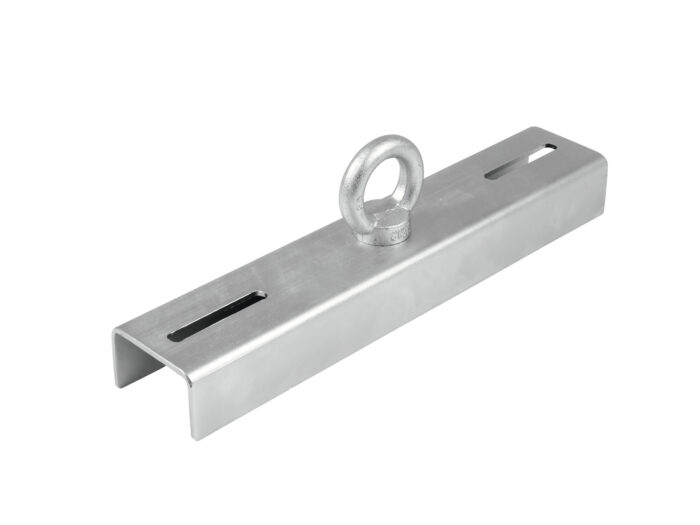

ALUTRUSS GI-1 Truss Adapter silver
Truss mount
- U-profile for hanging truss from the ceiling
- Designed for trusses from 25 to 40 cm
- Thanks to its adjustable system, just one adapter can be used for different trusses
- M20 ring bolt with washer and self-locking nut
- Without clamps
- Made in Europe

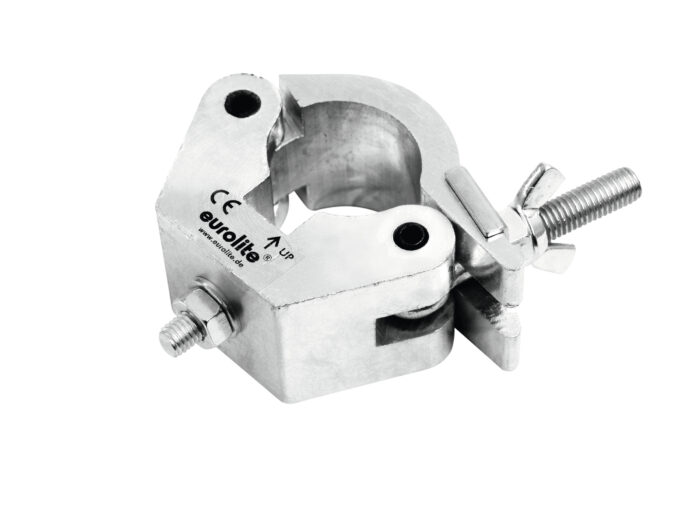

EUROLITE TPC-50 Half Coupler
Mounting coupler for 50 mm tube, maximum load WLL 800 kg
| Trusspipe: | 50 mm |
| Dimensions: | Height: 5 cm |
| Weight: | 3,81 kg |
| ALUTRUSS GI-1 Truss Adapter silver | |
| Maximum load BGV C1 (8-fold): | 250 kg |
| Max. load WLL (4fold): | 500 kg |
| Material: | Steel, 3,5 mm |
| Color: | Alu colored |
| Dimensions: | Length: 40 cm Width: 8 cm Height: 12 cm |
| Weight: | 2,39 kg |
| EUROLITE TPC-50 Half Coupler | |
| Maximum load BGV C1 (8-fold): | 400 kg |
| Max. load WLL (4fold): | 800 kg |
| Tube diameter sector: | 45 – 50 mm |
| Material: | Aluminum |
| Color: | Silver |
| Mounting screw: | M10 |
| Dimensions: | Length: 11 cm Width: 5 cm Depth: 11,50 cm |
| Weight: | 710 g |
