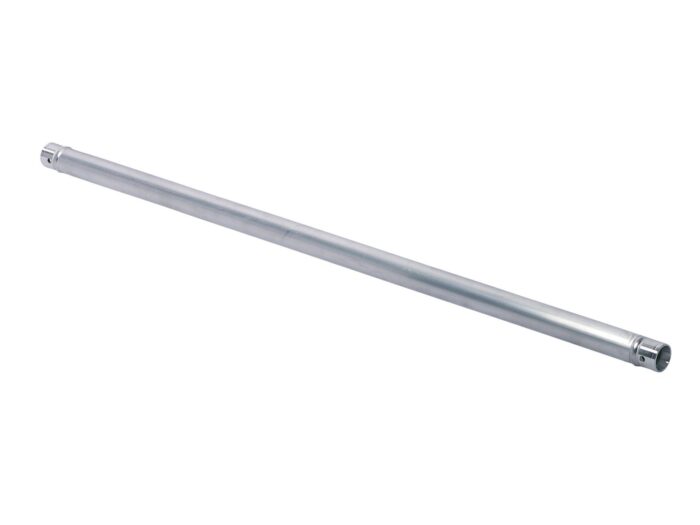

ALUTRUSS DECOLOCK DQ1-2500 1-way Cross Beam

DECOLOCK DQ1 1-point truss systemDECOLOCK DQ1 is a 1-point truss system made of aluminum. The individual elements are connected via a cone, pivot and pin.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.With DECOLOCK DQ1, decorative frames with advertising signs, transmission canvas etc. can be realized.The documentation of this truss system is closely related to the Codes of Practice SQ P1 – Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!Please note: this truss system must never be combined with other systems!

Universal 1-point truss system in lightweight construction

• DECOLOCK is designed as a universal truss system for visually appealing interiors, exhibition stands, shop fittings, stage and theatre constructions and more
• Aluminum alloy for a classic high-tech look
• DQ1 is particularly suitable as a frame construction for projection foils
• High-quality aluminum tube (? 35mm) in lightweight construction
• Fast, efficient and reliable assembly via quick lock conical connectors
• An extensive selection of lengths, circular and corner elements offers maximum flexibility
• Available as 1-, 2-, 3- and 4-point version
• Special designs according to customer specifications on request
• Also available in all standard RAL colors
• 1 set of cone connectors included

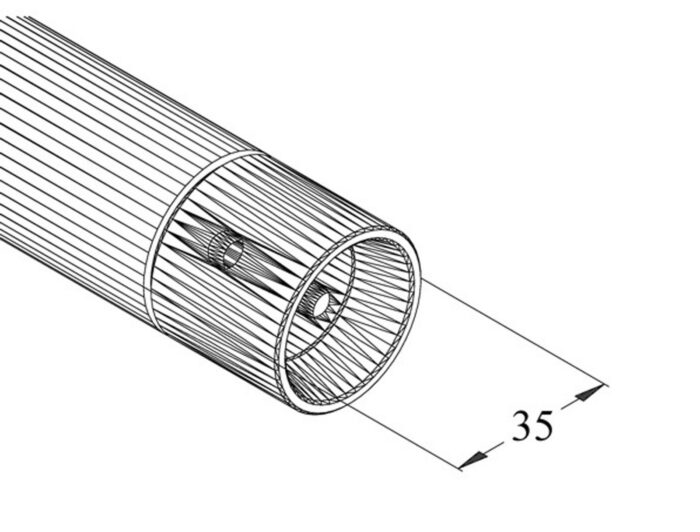

• Trusspipe: 35 mm
• Made in Europe
• For application areas such as: Shop fitting
