Allen & Heath SQ6+ Digital Mixer

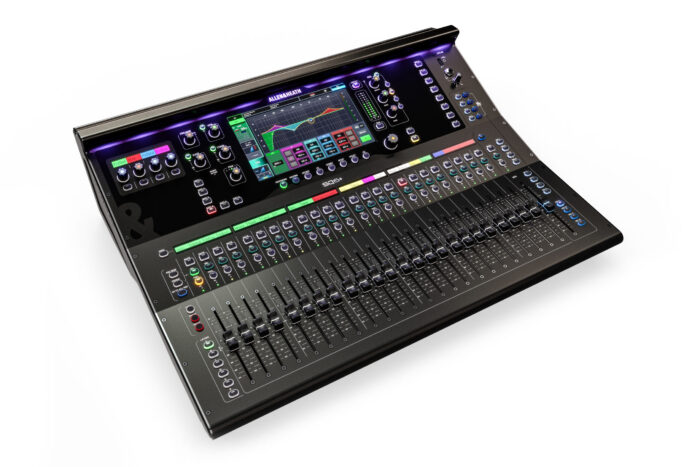

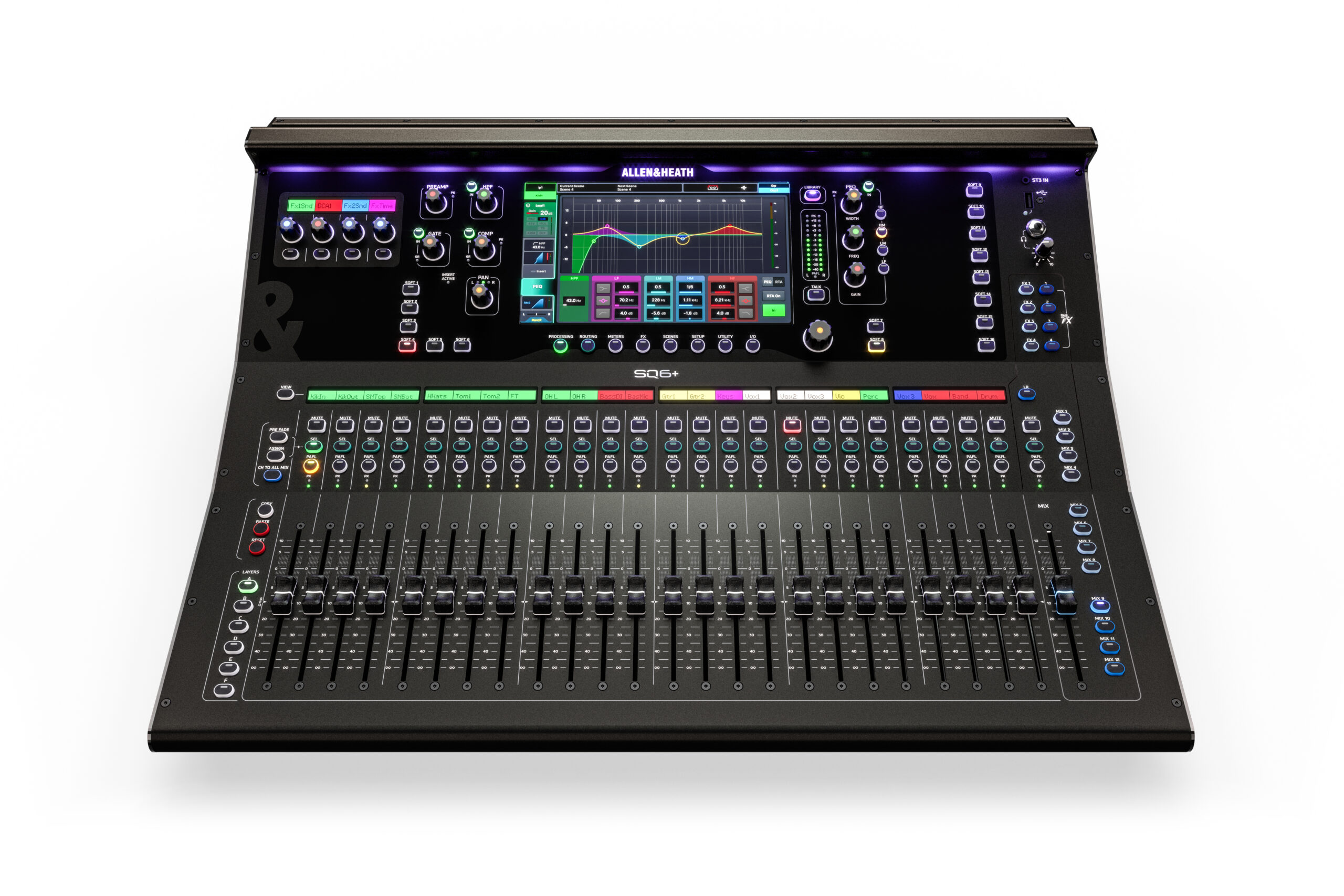

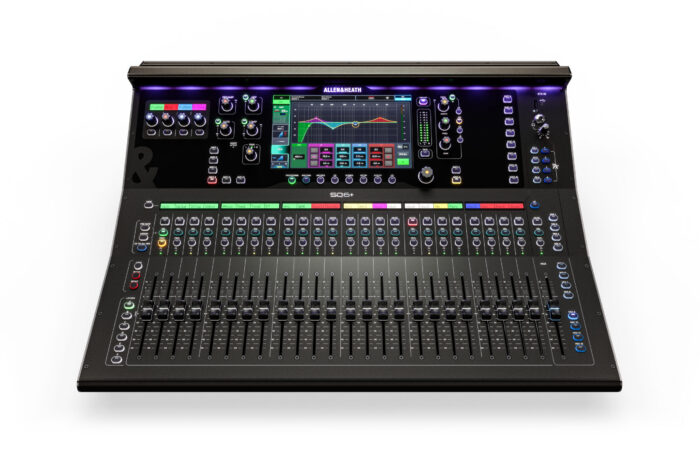

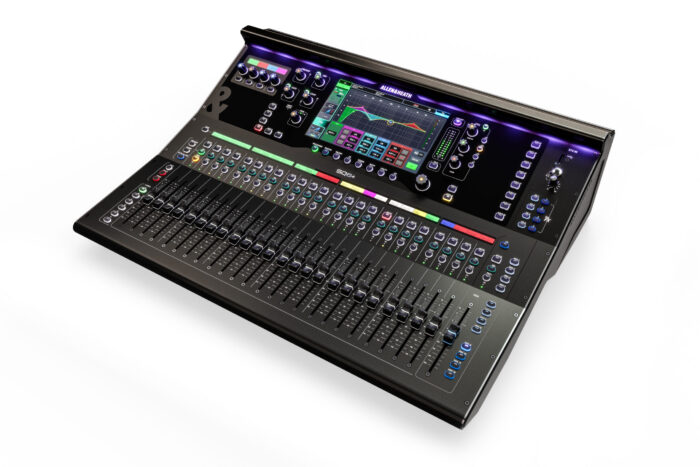

The Allen & Heath SQ6+ is a professional 48-channel, 44-bus digital mixer that balances extensive hands-on control with a compact and portable design. Equipped with 25 motorised faders, 16 assignable SoftKeys, and four SoftRotaries, it provides fast and intuitive control for larger productions, complex live shows, installations, broadcast applications, and multitrack recording.
At the heart of the SQ6+ is Allen & Heath’s 96 kHz XCVI processing core, delivering high-resolution audio and ultra-low-latency performance. Every input channel includes a high-pass filter, gate with sidechain and filtering, freely assignable insert point, four-band parametric EQ with RTA, and Peak/RMS compressor. Mix outputs feature parametric EQ, 28-band graphic EQ, and compression.
The responsive 9-inch touchscreen features a clear dark graphical interface designed for fast navigation in different mixing environments. Channels and mixes can be dragged and dropped onto any strip, while custom names, colour coding, and chromatic channel metering provide immediate visual feedback. Six configurable fader layers make it easy to organise channels, mixes, effects, and control functions according to the requirements of each production.
The SQ6+ includes eight RackExtra FX engines with dedicated stereo returns and four built-in RackUltra FX engines with dedicated stereo sends and returns. It also supports Allen & Heath’s DEEP processing add-ons, allowing models of classic analogue processors to be integrated directly into channel and mix strips without adding latency.
An integrated 32 × 32 USB audio interface supports multitrack recording, playback, livestreaming, virtual soundchecks, and DAW control at both 96 kHz and 48 kHz. The built-in SQ-Drive recorder enables direct recording and playback using a USB drive, supporting up to 16 channels at 96 kHz or 32 channels at 48 kHz without requiring a computer.
For system expansion, the SQ6+ features a 128 × 128 Intelligent SLink port, providing access to Allen & Heath’s Everything I/O ecosystem of digital stage boxes, expanders, and compatible consoles. A dedicated expansion slot supports optional Dante, MADI, Waves, and additional SLink cards.
Two independent 24-channel Automatic Mic Mixers can operate simultaneously for separate zones or be combined into a single 48-channel AMM. This makes the SQ6+ particularly suitable for conferences, panel discussions, houses of worship, corporate events, and broadcast applications.
Built around a durable all-metal chassis, the SQ6+ is designed to withstand the demands of touring and permanent installation while maintaining a streamlined and professional appearance.
Key Features
- 48-channel, 44-bus digital mixer
- 96 kHz XCVI processing core
- 25 × 100 mm motorised faders
- Six configurable channel-strip layers
- Responsive 9-inch touchscreen with dark GUI
- 16 assignable SoftKeys
- Four assignable SoftRotaries
- Drag-and-drop channel and mix layout
- Custom channel naming and colour coding
- Chromatic channel metering
- 12 stereo auxiliary/group mixes plus LR
- Six mono or linkable matrix mixes
- Full input channel and mix processing
- DEEP processing ready
- Eight RackExtra FX engines
- Four RackUltra FX engines
- Two independent 24-channel Automatic Mic Mixers
- 32 × 32 USB audio interface at 96 kHz and 48 kHz
- Integrated SQ-Drive USB recording and playback
- 128 × 128 Intelligent SLink port
- Expansion slot for optional Dante, MADI, Waves, and SLink cards
- AES3 stereo digital output
- Remote control via free desktop and mobile applications
- Configurable single or dual footswitch connection
- Durable all-metal chassis

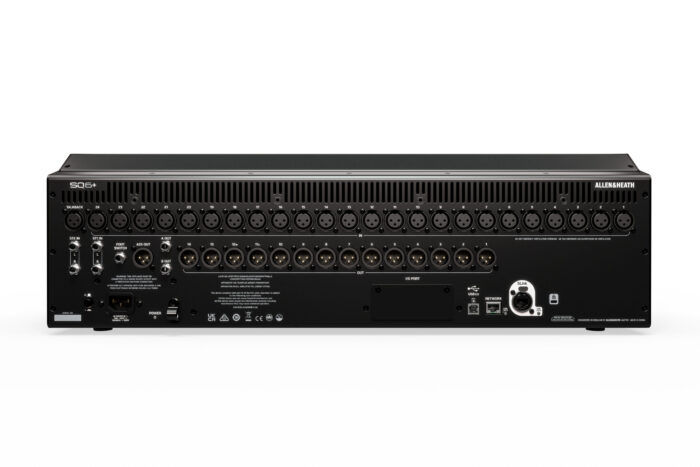

Analogue Connections
- 24 XLR microphone/line inputs
- 14 XLR outputs
- Three stereo line inputs
- Four 1/4-inch TRS line input sockets
- One 3.5 mm stereo line input socket
- Dedicated XLR talkback input
- Two TRS outputs
- Stereo headphone output
Recording and Playback
- USB-A recording and playback: 16 channels at 96 kHz
- USB-A recording and playback: 32 channels at 48 kHz
- USB-B audio interface: 32 × 32 channels at 96 kHz
- USB-B audio interface: 32 × 32 channels at 48 kHz
- Multitrack recording and playback
- Livestreaming and virtual soundcheck support
- DAW control through the Allen & Heath MIDI Control app
