Allen & Heath SQ-Rack

Ettetellimisel

48 channel, 96kHz 4U Rackmount Digital Mixer For Live Sound, AV And Installation

Ilma käibemaksuta 2007.38€

2449.00€

Kogus
Tootekood: SQ-RACK Kategooria:
Lisa soovinimekirja
Ask for delivery time
×

    Küsi abi

    Ross

    [email protected]

    +372 5699 7759

    Tasuta tarne, kui e-poe tellimuse summa ületab 139€
    14-päevane raha tagasi garantii
    Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

    A New Standard in Compact Digital Mixing

    48 channel, 96kHz rackmount digital mixer for live sound, AV and installation.

    SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments, SQ-Rack combines power, flexibility, and intuitive control in one versatile solution.



    Core. Connectivity. Control.

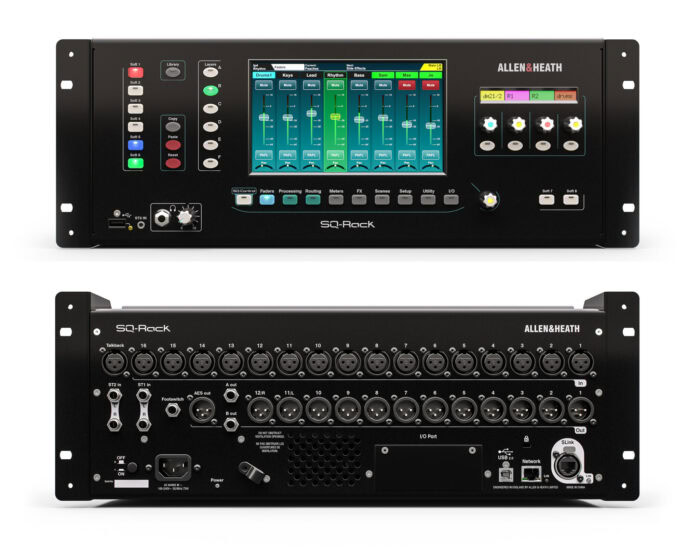

    SQ-Rack packs SQ’s 96kHz XCVI core into a shallow 4U rack-mount form factor with built-in I/O, powerful SLink connectivity, option cards, and multichannel USB. Enjoy hands-on controls and customisable screens, along with remote access via SQ apps for ultimate control of your audio.



    Core

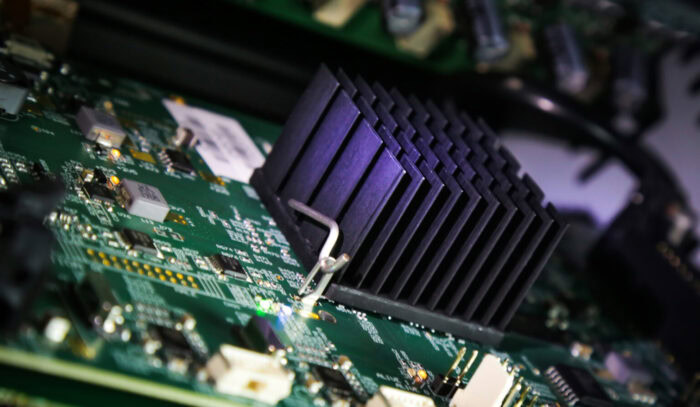

    96kHz XCVI Processing

    SQ-Rack is built on Allen & Heath’s renowned 96kHz XCVI FPGA engine, delivering exceptional high-resolution audio quality, ultra-low latency of <0.7ms and variable bit depths for optimised dynamic range. XCVI allows SQ to handle 48 input channels at 96kHz, with massive mix headroom thanks to a 96bit accumulator, and the sheer power to embed our acclaimed DEEP plugins into all 48 input channels and all mixes.

    Connectivity

    Comprehensive I/O Expansion

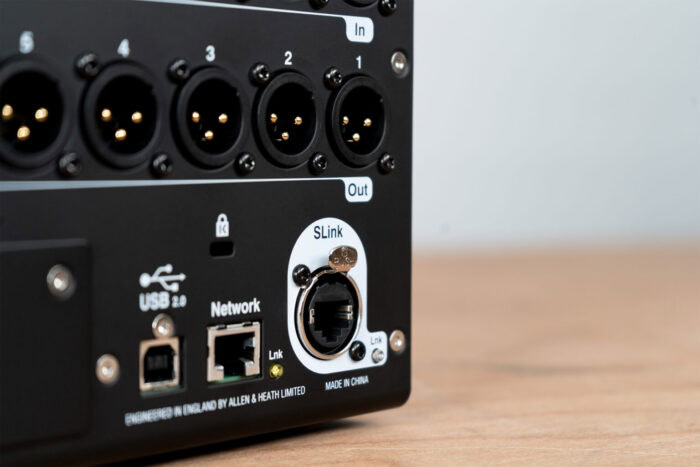

    SQ-Rack features 16 high-quality onboard mic preamps and 3 stereo line inputs, and thanks to the integrated SLink port, adding more inputs and outputs is easy. Up to 48 mic inputs can be added via Allen & Heath’s extensive “Everything I/O” range of audio expanders.

    You can just slot in one of our 64×64 audio networking cards for seamless integration into Dante and Waves networks, digital FoH/Monitor splits with SQ, Avantis and dLive mixers via SLink, or for MADI connectivity with third-party equipment.

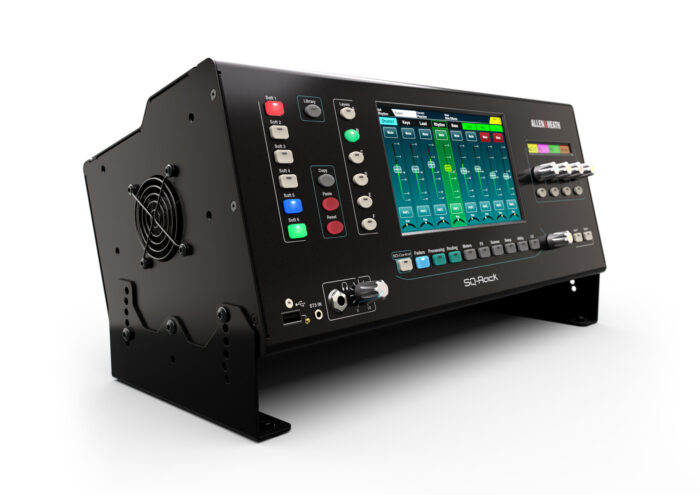

    Control

    No Faders? No Problem!

    Despite SQ-Rack’s faderless design, there are no compromises when it comes to control.

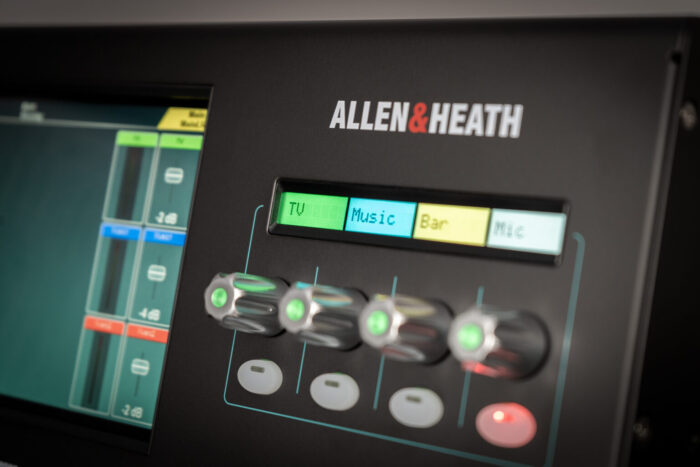

    The SQ-Rack’s faders screen provides instant access to level controls, plus 8 SoftKeys and 4 Soft Rotaries – all assignable with LCD displays – so you get to choose which functions you have at your fingertips.

    The SQ MixPad app for Android, iOS, Windows, and macOS provides access to the SQ-Rack’s mixing functions from anywhere in the venue, with an offline mode allowing preparation of scenes or shows away from the venue.

    For less technical users, the SQ-Control app provides simplified access in-app in addition to a dedicated screen on the SQ-Rack itself. SQ-Control can be configured by an admin user to deliver just the right amount of control for each application or dry hire, whether that’s single fader control of background music from behind the bar or controlling live stream levels in a House of Worship.

    Processing & FX

    All the Tools for the Perfect Mix & All The Power You Need

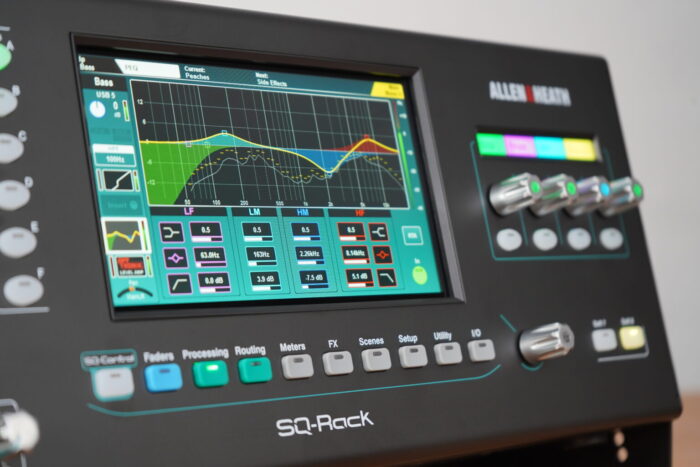

    Every input has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients.

    Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.

    Add-Ons

    Take Your Mix to the Next Level

    With SQ-Rack’s DEEP processing architecture, add studio quality compressor and preamp emulations to your inputs and mixes—no extra setup, zero latency, and all integrated seamlessly into your mixer.

    Read more about Add-Ons

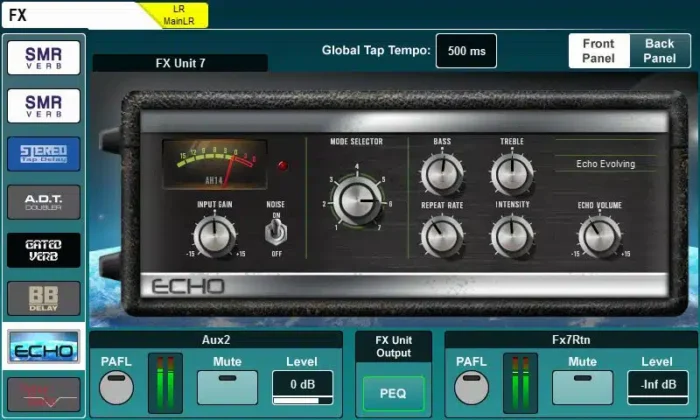

    World-Class FX

    Allen & Heath has a well-earned reputation for crafting FX emulations that rival the very best plug-ins, but with none of the associated hassle. SQ-Rack is armed with 8 stereo FX engines and features the acclaimed RackExtra library of emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. All FX have dedicated stereo returns, so you don’t need to consume input channels.

    Advanced Automatic Mic Mixer

    Ideal for conferences and multi-mic environments, the advanced AMM feature offers two independent 24-channel mixers or a combined 48-channel setup—enabling clear, consistent sound in complex, multi-speaker settings with zero added latency.

    Crafted for Live Sound and Installation Environments

    Whether you’re equipping a venue, a touring band taking it to the next level, or building a professional in-ear monitoring system, the SQ-Rack is built for any challenge. From installations in bars to cruise ships, or integration with larger systems to bands on the move and IEM/pro touring, SQ-Rack is the ultimate solution to provide crystal clear sound, every time.

    Stand-Alone or Integrated

    From intimate bars to cruise ships and large venues, SQ-Rack excels in fixed installations or as part of bigger systems. With its compact design and powerful capabilities, it’s the natural fit for premium sound.

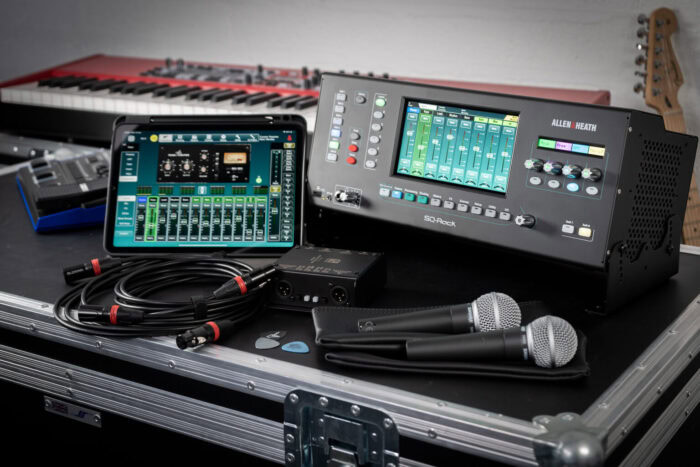

    Ready for the Road

    Touring bands and engineers can take their sound to the next level with SQ-Rack. Mix front-of-house (FOH) and monitors with ease, all while enjoying portability and reliability in every gig.

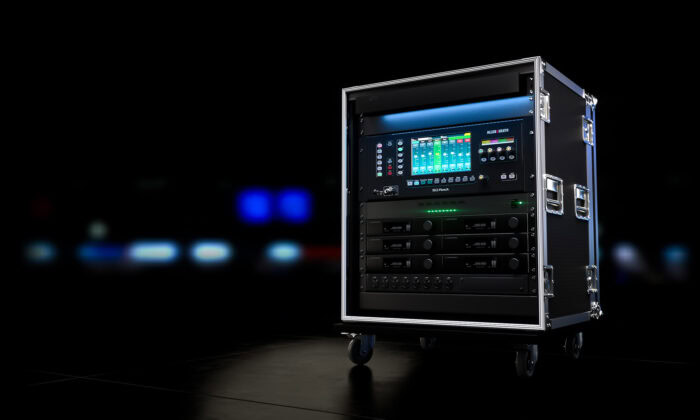

    The Ultimate IEM Mixer

    With 12 stereo mixes, ultra-low latency under 0.7ms, and powerful parametric and graphic EQs on every mix, SQ-Rack is the perfect centrepiece for in-ear monitoring setups. Its shallow 4U size fits easily into IEM racks, making it ideal for touring.

    Built for the rigours of touring, SQ-Rack lets you take control of your monitor mixes for a consistent sound at every show, and without relying on house equipment. Need more output options? Add a DX012 output expander for even greater connectivity. Digital split to FOH? Slot in one of our audio networking cards.

    Flexible Multitrack Recording

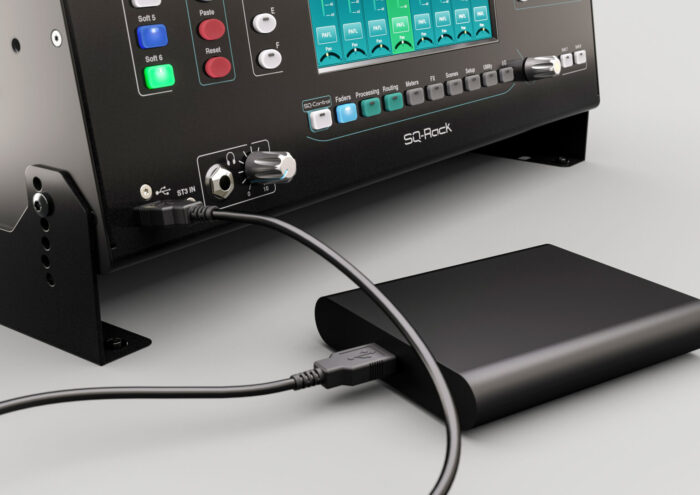

    Capture every performance effortlessly. With the integrated SQ-Drive, recording multitrack or stereo mixes to a USB device storage is a seamless, hassle-free experience—no need for additional software or external devices.

    SQ-Rack also features a 32×32 96kHz USB interface that is ASIO and Core Audio compliant, ensuring smooth compatibility with your preferred DAW, perfect for virtual soundchecks, playback, and multitrack recording needs.



    Audio and Processing:

    • 96kHz XCVI FPGA processing
    • 48 input channels
    • 12 stereo mixes + LR
    • 3 stereo matrix (split to 6 mono)
    • 8 stereo FX engines + dedicated stereo returns
    • DEEP processing ready

    Onboard I/O:

    • 16+1 built-in mic preamps
    • 3 stereo line inputs
    • 12 XLR line outputs
    • 2 TRS line outputs
    • AES output

    Control:

    • 7” capacitive touchscreen
    • 8 assignable SoftKeys
    • 4 assignable soft rotaries
    • SQ-MixPad app
    • SQ-Control app
    • SQ4You app

    Expandability and Integration:

    • SLink port for remote audio / expansion
    • 64×64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)

    Recording and Streaming:

    • SQ-Drive direct recording to USB
    • 32×32 96kHz USB interface
