Allen & Heath Qu-7

Ettetellimisel

Compact 38in/24out 96kHz Digital Mixer

Ilma käibemaksuta 2663.11€

Algne hind oli: 3333.00€.Current price is: 3249.00€.

Kogus
Tootekood: QU-7 Kategooria: Silt:
Ask for delivery time
×

    Küsi abi

    Ross

    [email protected]

    +372 5699 7759

    Tasuta tarne, kui e-poe tellimuse summa ületab 139€
    14-päevane raha tagasi garantii
    Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

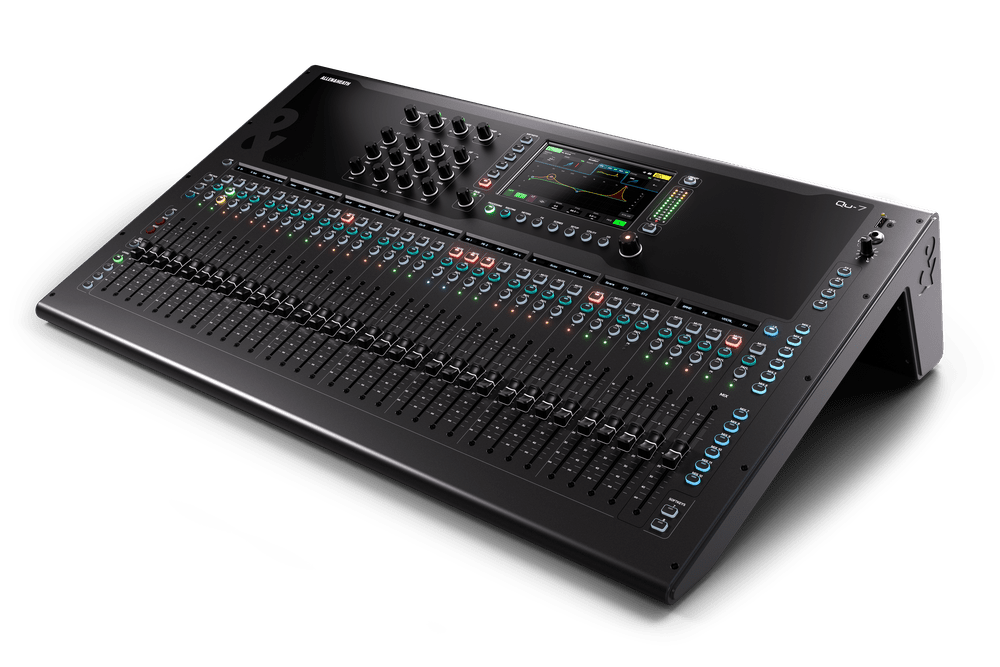

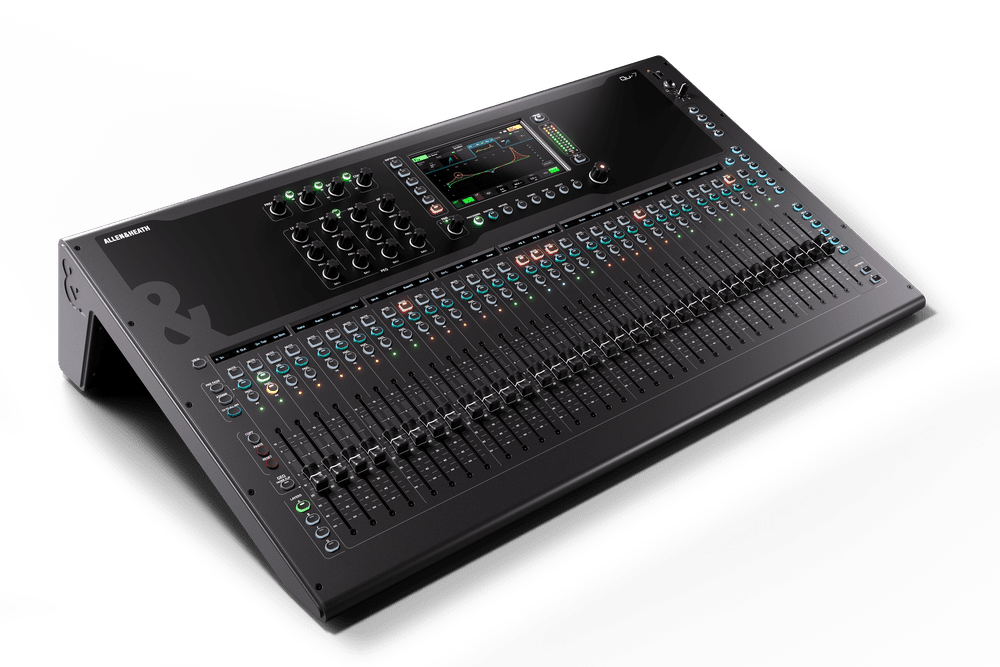

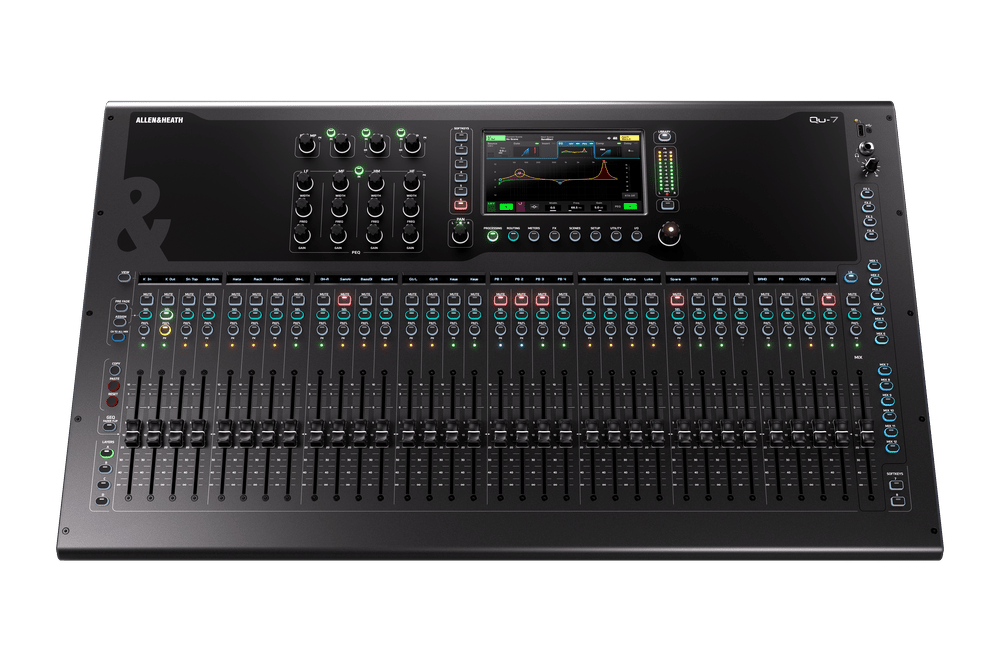

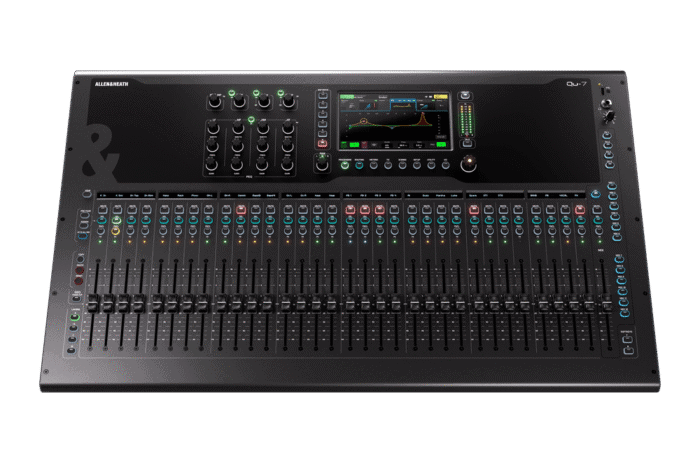

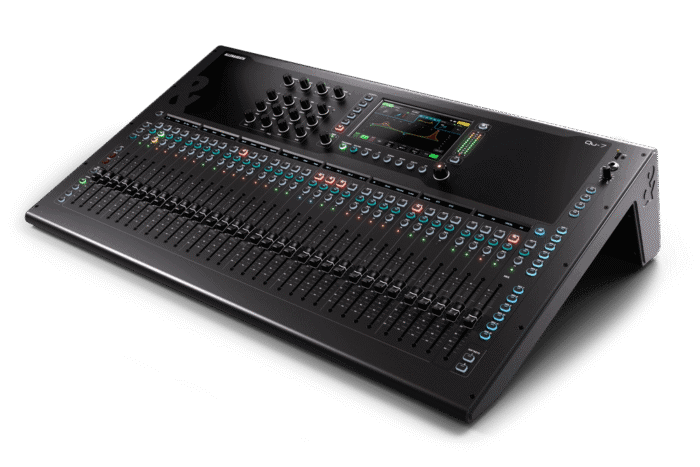

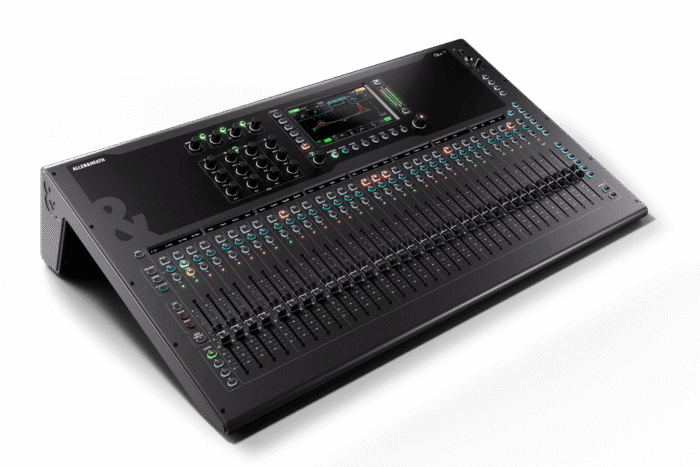

    Allen & Heath Qu-7 – 38-In/24-Out 96kHz Digital Mixer

    Professional Mixing Power in a Streamlined Design

    The Allen & Heath Qu-7 is a high-performance 96kHz digital mixer engineered for live sound, studio, broadcast, and AV applications. Featuring Allen & Heath’s renowned XCVI FPGA core, this mixer offers powerful processing, versatile I/O, and intuitive hands-on control.

    🎚️ Key Features

    • 96kHz XCVI Core Processing
      Experience ultra-low latency and high-resolution 96kHz audio with advanced FPGA architecture.

    • 38 Inputs to Mix
      Designed for flexibility with 32 mono input channels (linkable) and 3 stereo input channels.

    • 32 High-Quality Mic Preamps
      Digitally controlled, recallable preamps ensure consistent and pristine gain structure.

    • 33 Motorized 100mm Faders
      Seamlessly manage up to four layers of inputs and mixes with fast, responsive faders.

    • 7” Capacitive Touchscreen
      A bright and responsive interface offering intuitive navigation, metering, and control of key parameters.

    • Comprehensive Mixing Architecture

      • 12 mix outputs: 6 mono (linkable aux/groups) and 6 stereo

      • 4 matrix outputs (mono/stereo linkable)

      • Stereo Main LR output

    • Built-in Multi-FX Suite
      6 stereo FX engines with dedicated returns and editable effect types including reverb, delay, and modulation.

    • Multitrack Recording and Playback

      • 32×32 USB-C audio interface for DAW integration

      • SD card recording: 16×16 at 96kHz or 32×32 at 48kHz

      • USB-A port for stereo recording/playback and data backup

    • Remote Mixing
      Control from anywhere in the venue using Allen & Heath apps for Windows, macOS, iOS, and Android.

    • Expandable I/O via SLink
      128×128 Intelligent SLink port allows connection to remote stageboxes and expansion units from the Everything I/O ecosystem.

    📐 Technical Specifications

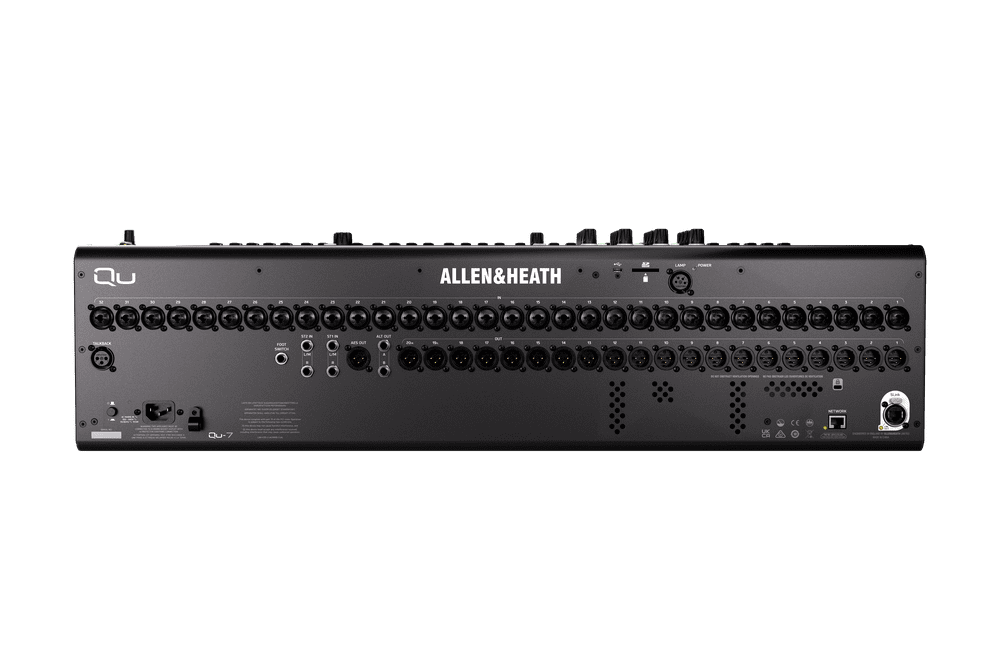

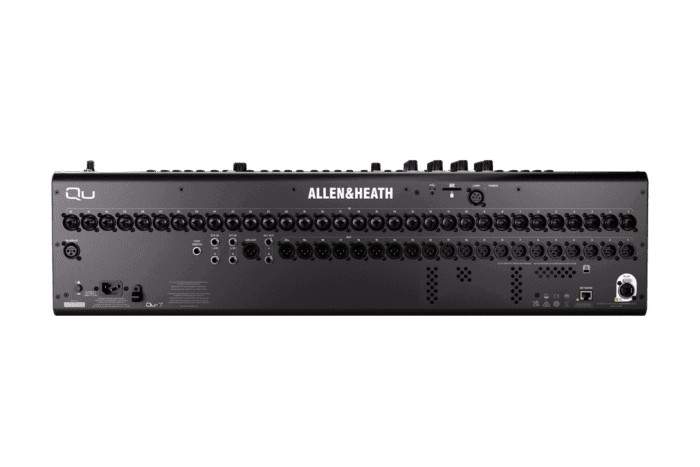

    • Inputs: 32 XLR/TRS combo mic/line, 2 stereo TRS line

    • Outputs: 20 XLR, 2 TRS, 1 AES3 digital out, 1 talkback XLR

    • Dimensions: 800mm (W) x 476mm (D) x 211mm (H)

    • Weight: 16.7 kg

    • Power: Universal PSU with IEC connection

    • Mounting: Rackmountable (optional kit required)
