Allen & Heath Qu-6D – 38-In/24-Out 96kHz Digital Mixer with Dante
Elevate Your Mixing Experience
The Allen & Heath Qu-6D is a state-of-the-art digital mixer designed for live sound, studio, and broadcast applications. Combining advanced 96kHz FPGA processing with integrated Dante networking, the Qu-6D delivers exceptional audio quality and versatile connectivity in a compact form factor.
🎛️ Key Features
-
96kHz XCVI Core Processing: Ensures ultra-low latency and high-resolution audio for pristine sound quality.
-
38 Inputs to Mix: Includes 32 mono (linkable) and 3 stereo channels, providing flexibility for various input configurations.
-
24 Premium Mic Preamps: Digitally controlled for precise gain settings and recallable configurations.
-
25 Motorized Faders: Smooth 100mm faders across 4 layers offer intuitive control over your mix.
-
7” Capacitive Touchscreen: Provides clear visual feedback and easy navigation through settings and parameters.
-
Integrated Dante Interface: 16×16 channels at 48/96kHz for seamless audio-over-IP networking.
-
Versatile I/O:
-
Inputs: 24 XLR/Jack combo mic/line, 2 stereo TRS line inputs.
-

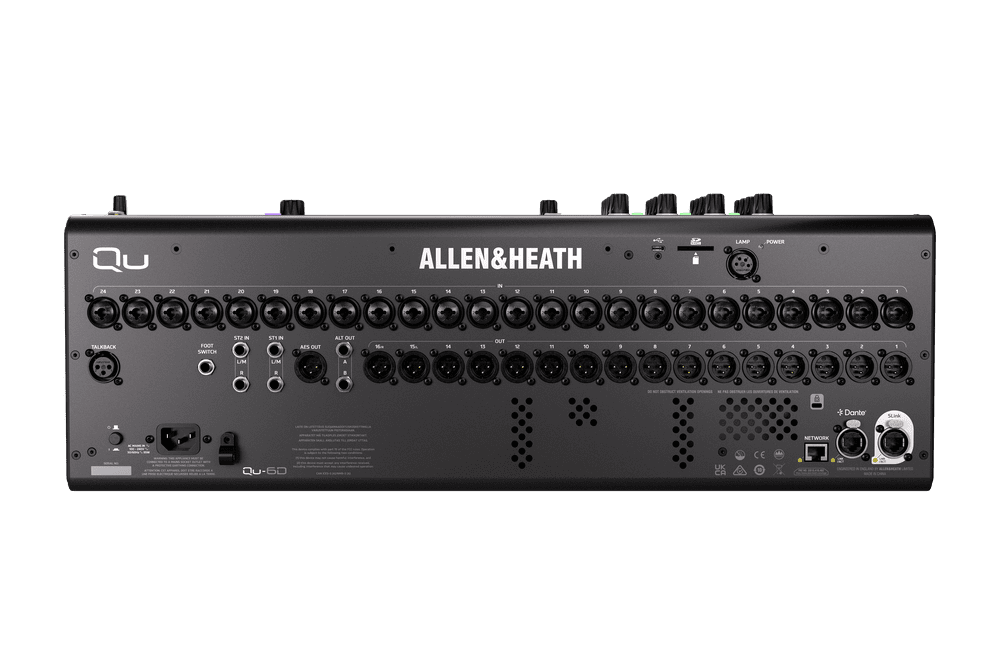

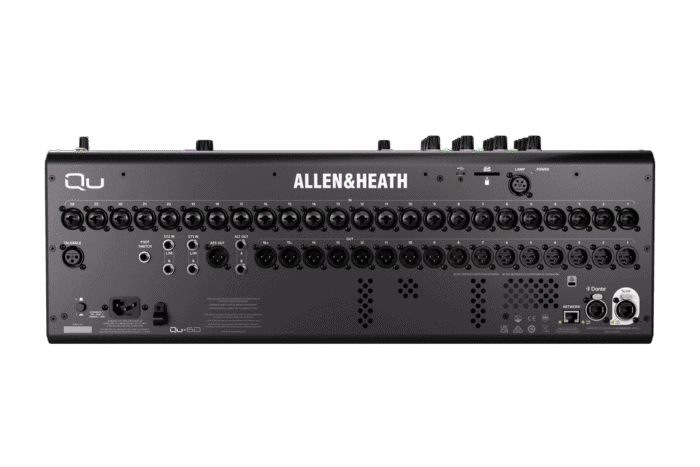

Outputs: 16 XLR, 2 TRS, 1 AES3 digital, and a dedicated talkback XLR.
-
-
Comprehensive Mixing Architecture:
-
12 mix outputs (6 mono/linkable aux/group, 6 stereo aux/group).
-
4 mono/linkable matrix outputs.
-
Stereo Main LR output.Gearspace
-
-
6 Multi-FX Engines: Each with dedicated stereo returns, offering a range of high-quality effects.
-
Recording & Playback Options:
-
32×32 USB-C audio interface for multitrack recording/playback.
-
SD card slot supports 16×16 recording at 96kHz or 32×32 at 48kHz.
-
USB-A port for stereo recording/playback and data transfer.
-
-
Remote Control: Compatible with free apps for Windows, macOS, iOS, and Android, allowing wireless control over mixing parameters.
-
Expandable via SLink: 128×128 Intelligent SLink port enables connection to Everything I/O stageboxes and interfaces.
📐 Technical Specifications
-
Dimensions: 440mm (W) x 476mm (D) x 211mm (H)
-
Weight: 10 kg
-
Power: IEC mains connection with worldwide PSU
-
Mounting: 19” rackmount format (optional rack kit available)
The Allen & Heath Qu-6D stands out as a versatile digital mixer, offering high-end features in a compact design. Its integration of advanced processing, flexible I/O, and network capabilities makes it an ideal choice for professionals seeking reliability and performance in various audio environments.
