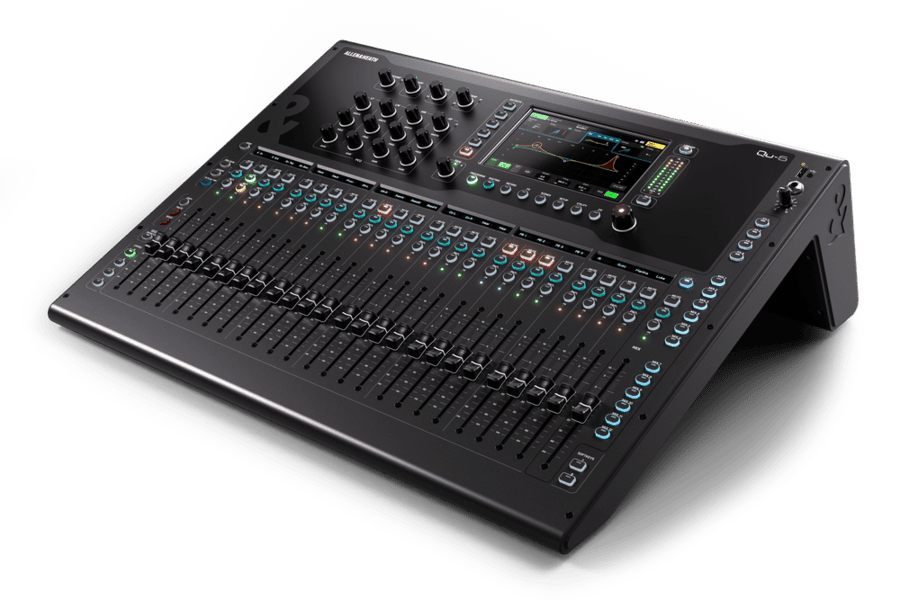

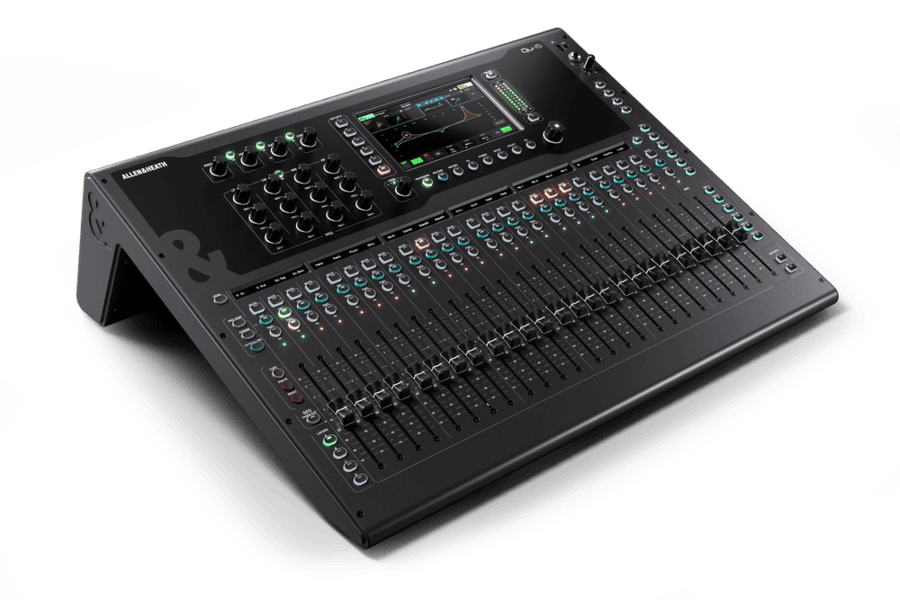

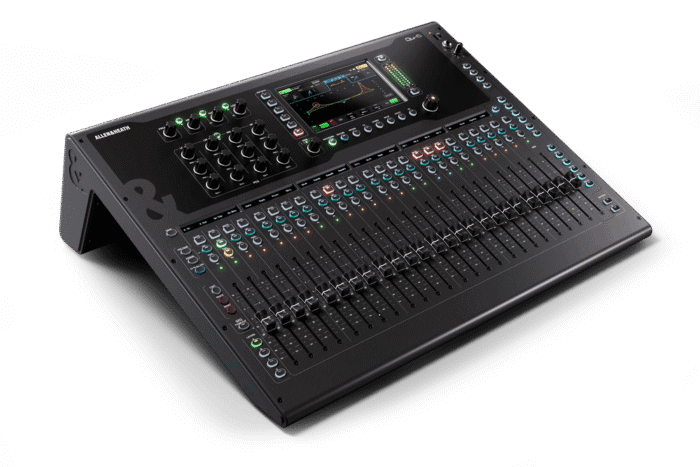

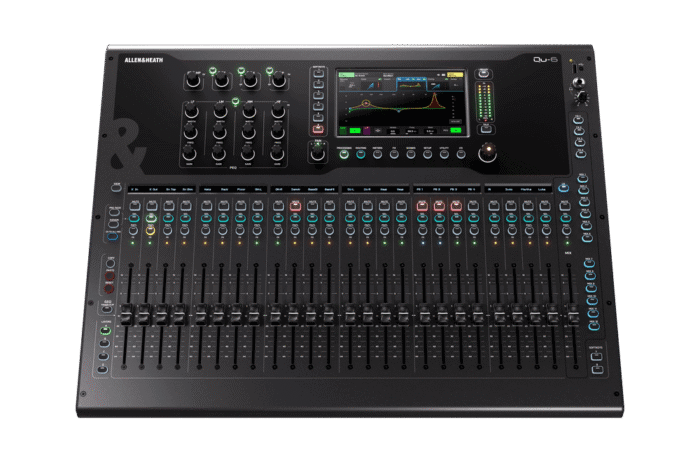

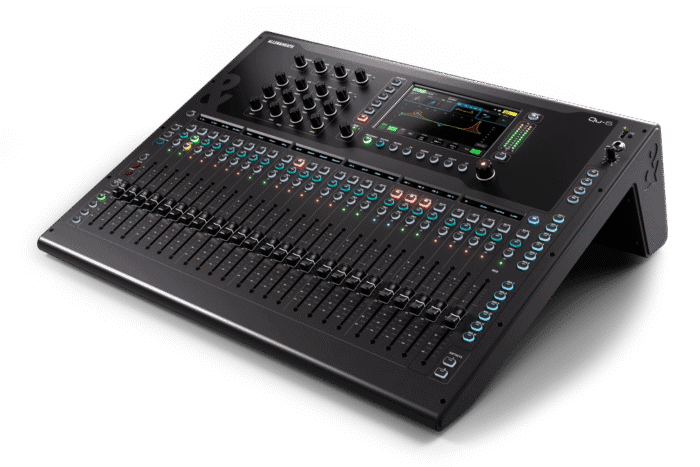

Allen & Heath Qu-6 – 38-In/24-Out 96kHz Digital Mixer
Streamlined Power, Exceptional Control
The Allen & Heath Qu-6 is a high-performance 96kHz digital mixer engineered for live sound, studio, broadcast, and AV applications. Featuring Allen & Heath’s renowned XCVI FPGA core, this compact mixer offers powerful processing, versatile I/O, and intuitive hands-on control.
🎚️ Key Features
-
96kHz XCVI Core Processing
Experience ultra-low latency (<0.7ms) and high-resolution 96kHz audio with advanced FPGA architecture. -
38 Inputs to Mix
Designed for flexibility with 32 mono input channels (linkable) and 3 stereo input channels. -
24 High-Quality Mic Preamps
Digitally controlled, recallable preamps ensure consistent and pristine gain structure. -
25 Motorized 100mm Faders
Seamlessly manage up to four layers of inputs and mixes with fast, responsive faders. -
7” Capacitive Touchscreen
A bright and responsive interface offering intuitive navigation, metering, and control of key parameters. -
Comprehensive Mixing Architecture
-
12 mix outputs: 6 mono/linkable aux or group mixes + 6 stereo
-
4 matrix outputs (mono/stereo linkable)
-
Stereo Main LR output
-
-
Built-in Multi-FX Suite
6 stereo FX engines with dedicated returns and editable effect types including reverb, delay, and modulation. -
Multitrack Recording and Playback
-
32×32 USB-C audio interface for DAW integration
-
SD card recording: 16×16 at 96kHz or 32×32 at 48kHz
-
USB-A port for stereo recording/playback and data backup
-
-
Remote Mixing
Control from anywhere in the venue using Allen & Heath apps for Windows, macOS, iOS, and Android. -
Expandable I/O via SLink
128×128 Intelligent SLink port allows connection to remote stageboxes and expansion units from the Everything I/O ecosystem.
📐 Technical Specifications
-

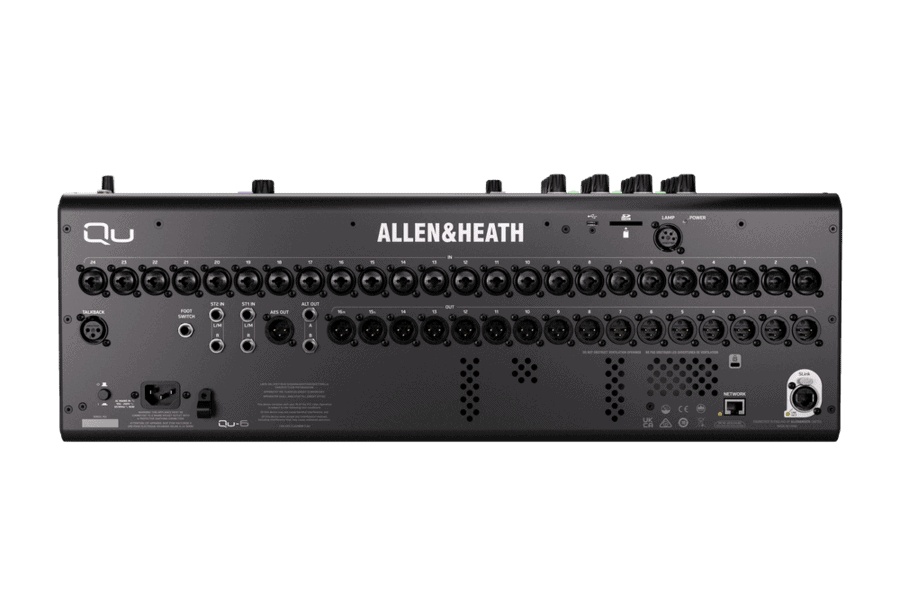

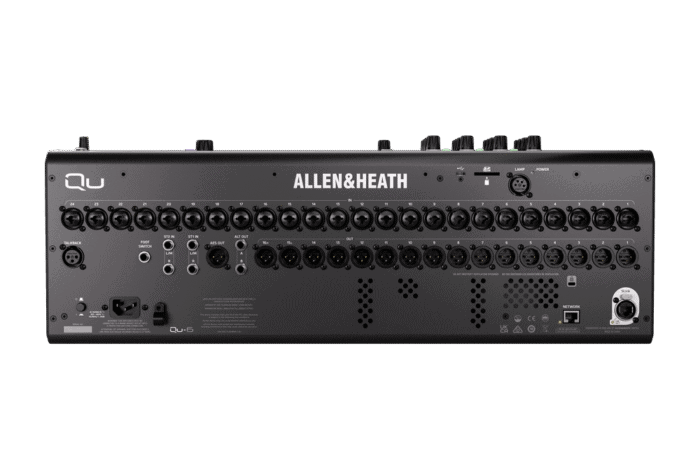

Inputs: 24 XLR/TRS combo mic/line, 2 stereo TRS line
-
Outputs: 16 XLR, 2 TRS, 1 AES3 digital out, 1 talkback XLR
-
Dimensions: 440mm (W) x 476mm (D) x 211mm (H)
-
Weight: 10 kg
-
Power: Universal PSU with IEC connection
-
Mounting: Rackmountable (optional kit required)
The Qu-6 offers the ideal balance of power, flexibility, and simplicity for professionals who need uncompromised audio quality without Dante networking. Perfect for medium-sized venues, houses of worship, streaming studios, and mobile setups, this mixer brings flagship performance into any workflow.
