DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.
Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.
Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.

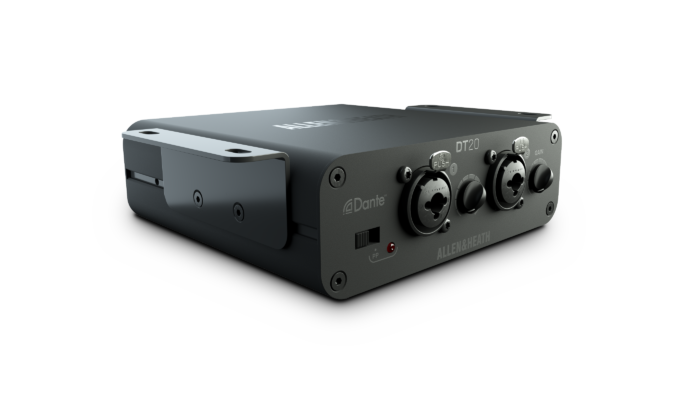

The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).
- Dante input interface, 48kHz/96kHz

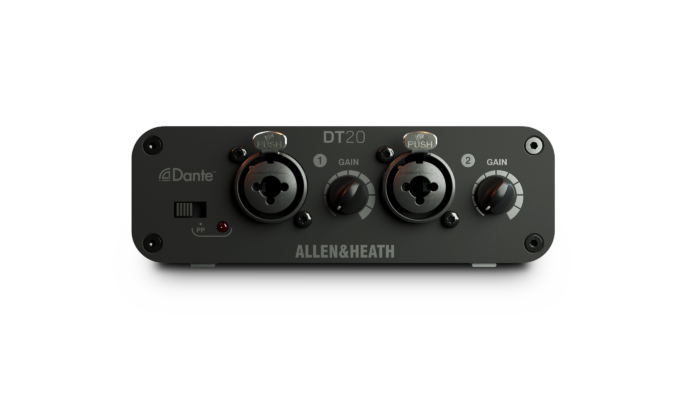

- 2x combi mic/line inputs
- Local gain control
- 48V phantom power with LED indicator

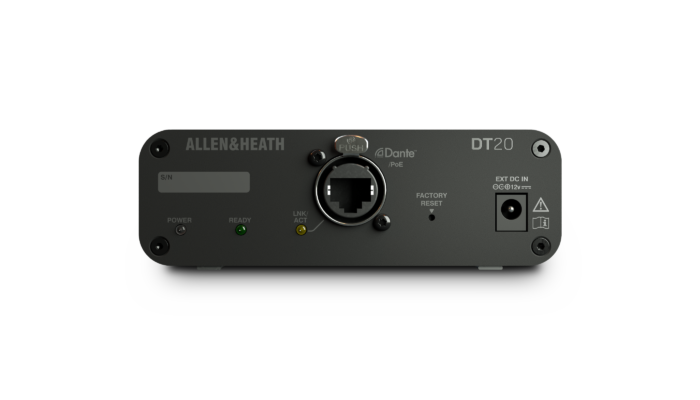

- PoE powered or DC 12V
- EtherCon connector
- Rugged aluminium box
- Optional ears for surface mounting (included in DT20-M version)

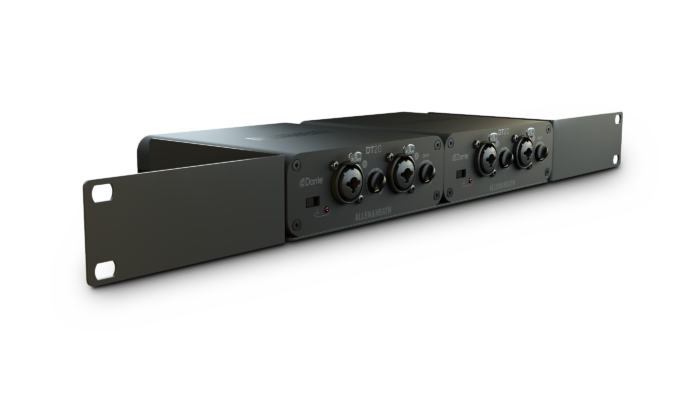

- Optional rack mounting kit DT-RK19
- AES67 compatible
- Dante Domain Manager ready
