Allen & Heath AH-CC-10 10-inch Custom Control Touch Panel for desktop or wall mount use
Perfect companions for AHM matrix processors, dLive or Avantis systems in installations, CC-7 and CC-10 are control touch panels for desktop or wall mount use. Powered by the Allen & Heath Custom Control app, they can operate as fixed control devices or complementing a BYOD solution. From simple music source selection to level control, preset recall or paging, they offer an alternative to our range of IP remote controllers for applications where a touchscreen interface is preferred.
Requires: Custom Control app, AHM-64, dLive, Avantis
Configured to run Custom Control in kiosk mode, the app prevents any unauthorized operation, securing the settings of the panel. The installer, integrator or system admin can exit the app to change the touch panel settings such as IP address or brightness, or to update the software.
Features
- PoE or DC 12V powered

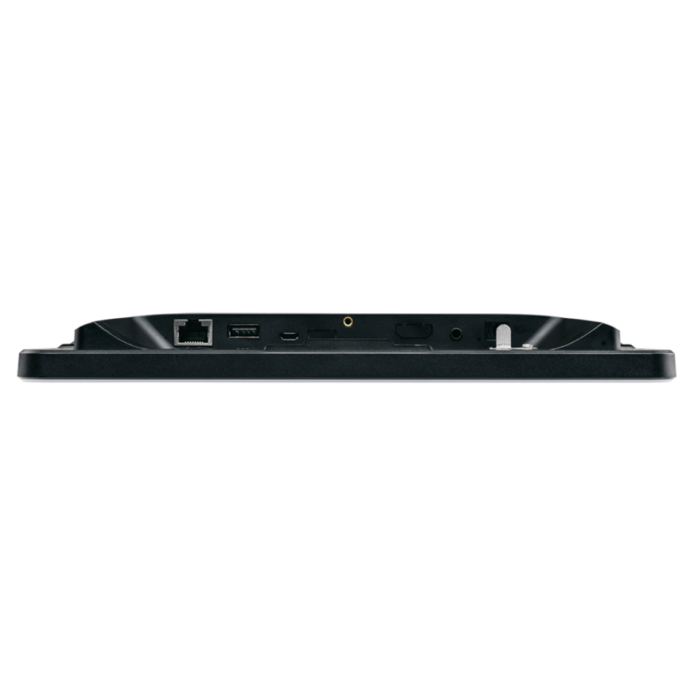

- Gigabit Ethernet port
- USB-A port for Custom Control updates

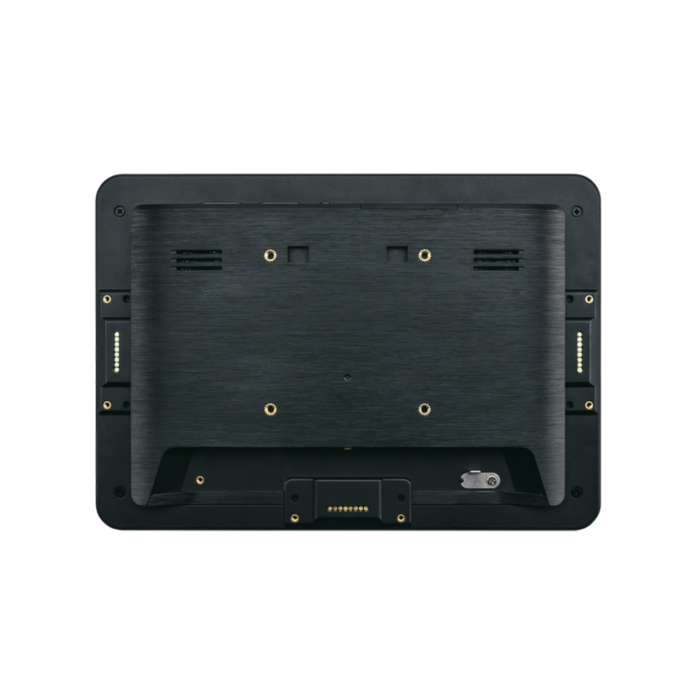

- VESA 75×75 mounting
- Desktop stand (CC-STN) and wall/glass mount bracket (CC-BRK) available
Specs
Power and Temperature
- DC Input +12V DC 2A
- Operating Temperature Range 0°C to 40°C (32°F to 104°F)
- PoE Requirements 802.3af 15W

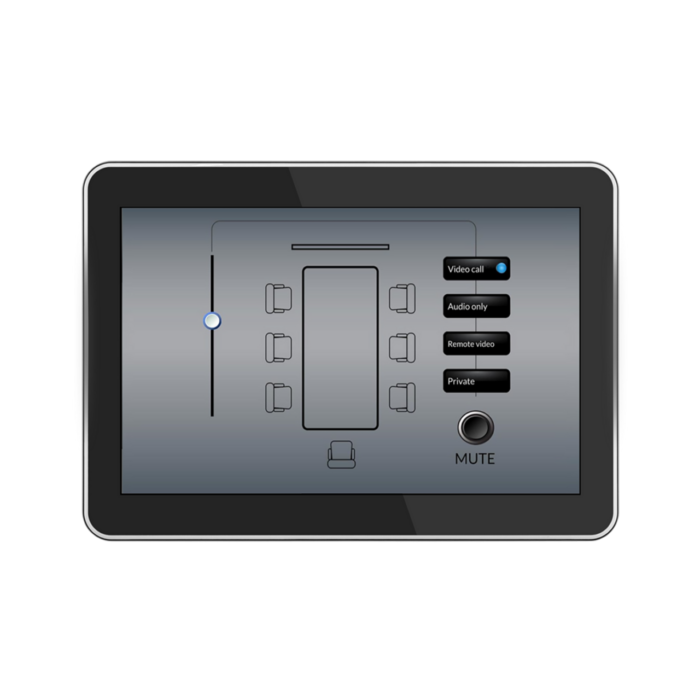

Screen
- Capacitive, 10 point touch projected
- Resolution 1024×600
- Brightness 240 cd/m2
- Viewing Angle H 140° / V 130°
- Contrast Ratio 600:1
- Aspect Ratio 17:10
