With an unrivalled price-performance ratio, AHM-16 delivers a 16×16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.
- 16×16 processing matrix
- 8×8 local analogue I/O
- I/O Port for audio networking, up to 128×128

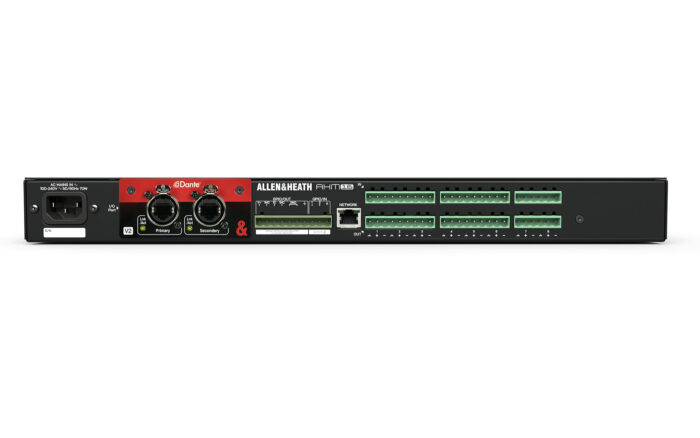

- Dante 96kHz option card (AES67 and DDM ready)

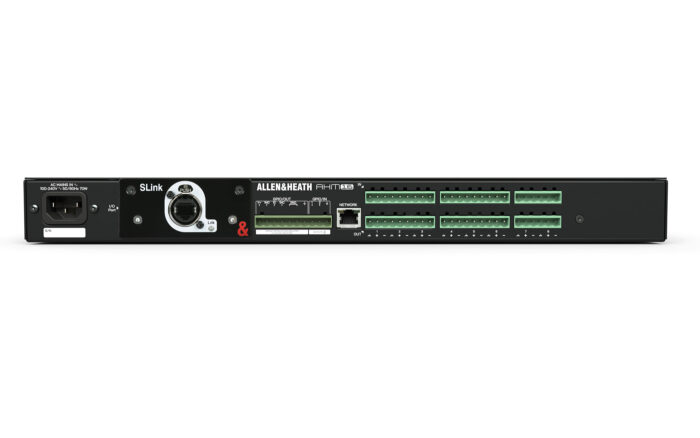

- SLink 128×128 option card for audio expansion
- 16 configurable processing outputs – mono / stereo zones or speaker processing
- 96kHz FPGA core with ultra-low latency

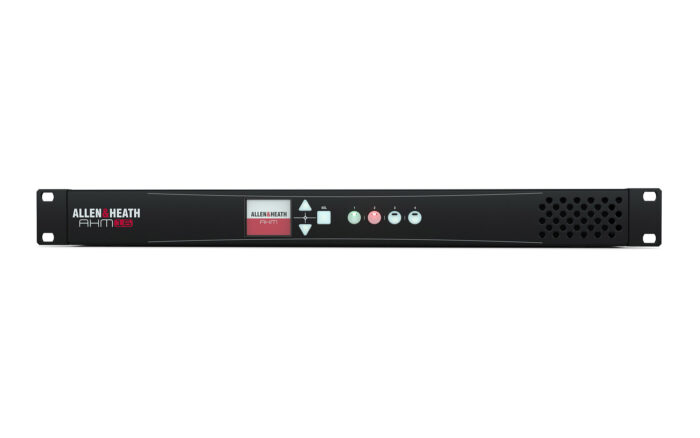

- Front panel screen and navigation
- 4x SoftKeys
- Compatible with IP1, IP6, IP8 remote controllers
- 2×2 local GPIO plus networkable GPIO interface
- TCP/IP protocol for third party integration
- Crestron, AMX and Extron drivers
- Mac / Windows System Manager software
- Custom Control app and editor for BYOD
- 4 user profiles
- Integrated stereo playback
- Event scheduler
