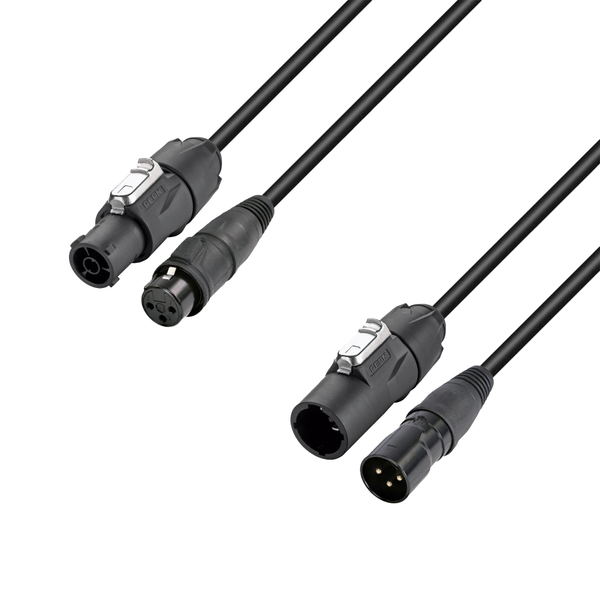

Adam Hall 4 STAR TRUE1 & 3-Pole IP65 DMX Hybrid Cable

Ettetellimisel
Kuumakse al. 6.77 / 18 kuud

Hybrid cable | Mains & DMX | XLR 3-pin x X Series IP65

Ilma käibemaksuta 88.71€

Price range: 110.00€ through 160.00€

Kogus
Tootekood: K4HTCOND Kategooria:
Uuri tarneaega
×

    Tasuta tarne, kui e-poe tellimuse summa ületab 139€
    14-päevane raha tagasi garantii
    Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

    Item highlights:

    • Hybrid cable for parallel transmission of DMX signals and power from the 4 STAR SERIES
    • Original Rean® 3-pin XLR connectors (Rean is a Neutrik® Group brand)
    • Rean® X Series mains connector (compatible with Neutrik® TRUE1) – pluggable under load, standard-compliant, IP65-certified
    • Inner conductor cross-sections: 2 × 0.22 mm² (AWG24) for DMX and 3 × 1.5 mm² (AWG16) for power
    • Developed by Adam Hall Cables® Crew in Germany

    General

    Split end length: 40 cm
    Cable jacket: PVC (Polyvinyl chloride)
    Cable diameter: 15 mm
    Cable colour: Black

    Plugs

    Connector type plug 1: XLR 3-pole female
    Model name plug 1: Rean RC3F-BAG
    Contact material plug 1: Silver plated
    Connector type plug 2: XLR 3-pole male
    Model name plug 2: Rean RC3M-BAG
    Contact material plug 2: Silver plated

    Line

    Conductor material: OFC (Oxygen-free copper)
    Conductor cross-section: 2 x 0,22 mm²
    AWG: 24
    Wave impedance: 110 Ω
    Shielding: Spiral copper shielding
    Cable jacket: PVC (Polyvinyl chloride)
    Cable diameter: 5 mm

    Mains plug

    Plug type connector 1: Mains plug device outdoor female & TRUE1®
    Model name connector 1: Rean RCAC3F-X-000
    Plug type connector 2: Mains plug device outdoor male & TRUE1®
    Model name connector 2: Rean RCAC3M-X-000

    Mains line

    Conductor material: OFC (Oxygen-free copper)
    Conductor cross-section: 3 x 1,5 mm²
    AWG: 16
    Cable jacket: PVC (Polyvinyl chloride)
    Cable diameter: 9 mm
