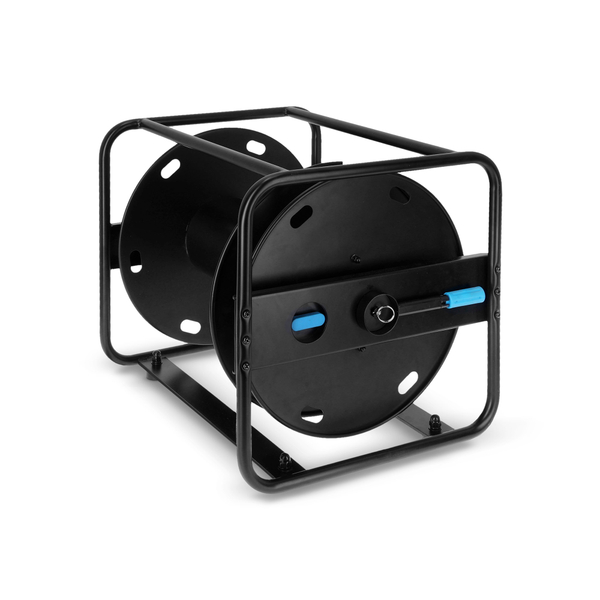

The 4 STAR CD 450 is a medium-sized industrial cable drum from the well-known 4 STAR SERIES. Made of robust, powder-coated steel, it shows impressive durability and resistance.
An adjustable, bolted separator can be placed in three different positions, allowing the size of the two winding regions to be adapted to the respective requirements. The separator allows the plug or stage box to be disconnected from the cable or an additional cable to be placed on the drum.
The rubber feet, which can be replaced by optional castors if required, ensure maximum stability. This means that the drum is ready for both stationary and mobile use.
To prevent the cable from slipping, we have created slots on the sides of the drum to allow the cable to be attached with a Velcro strip. In addition, a rotating parking brake ensures a secure hold during use.
The 4 STAR CD 450 was developed by our experienced Adam Hall Cables® crew in Germany and combines the highest quality with meticulously designed functionality. Perfect for professional applications where reliability and flexibility are required.
The capacity of the cable drum depends on the outer diameter of the cable used. The following overview shows the maximum possible cable length depending on the cable diameter:
- Ø 12 mm → 230 m
- Ø 15 mm → 150 m
- Ø 18 mm → 100 m
- Ø 20 mm → 80 m
- Ø 22 mm → 70 m
- Ø 24 mm → 60 m
- Ø 26 mm → 50 m
- Ø 28 mm → 40 m
- Ø 30 mm → 36 m
- Ø 32 mm → 32 m
